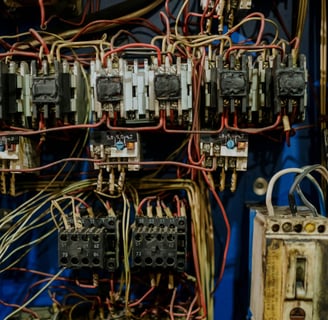

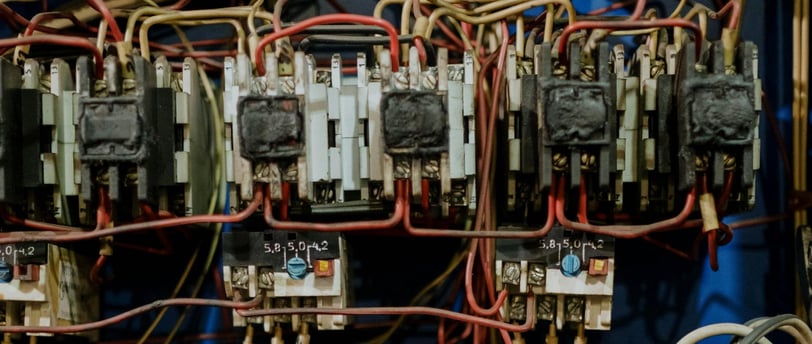

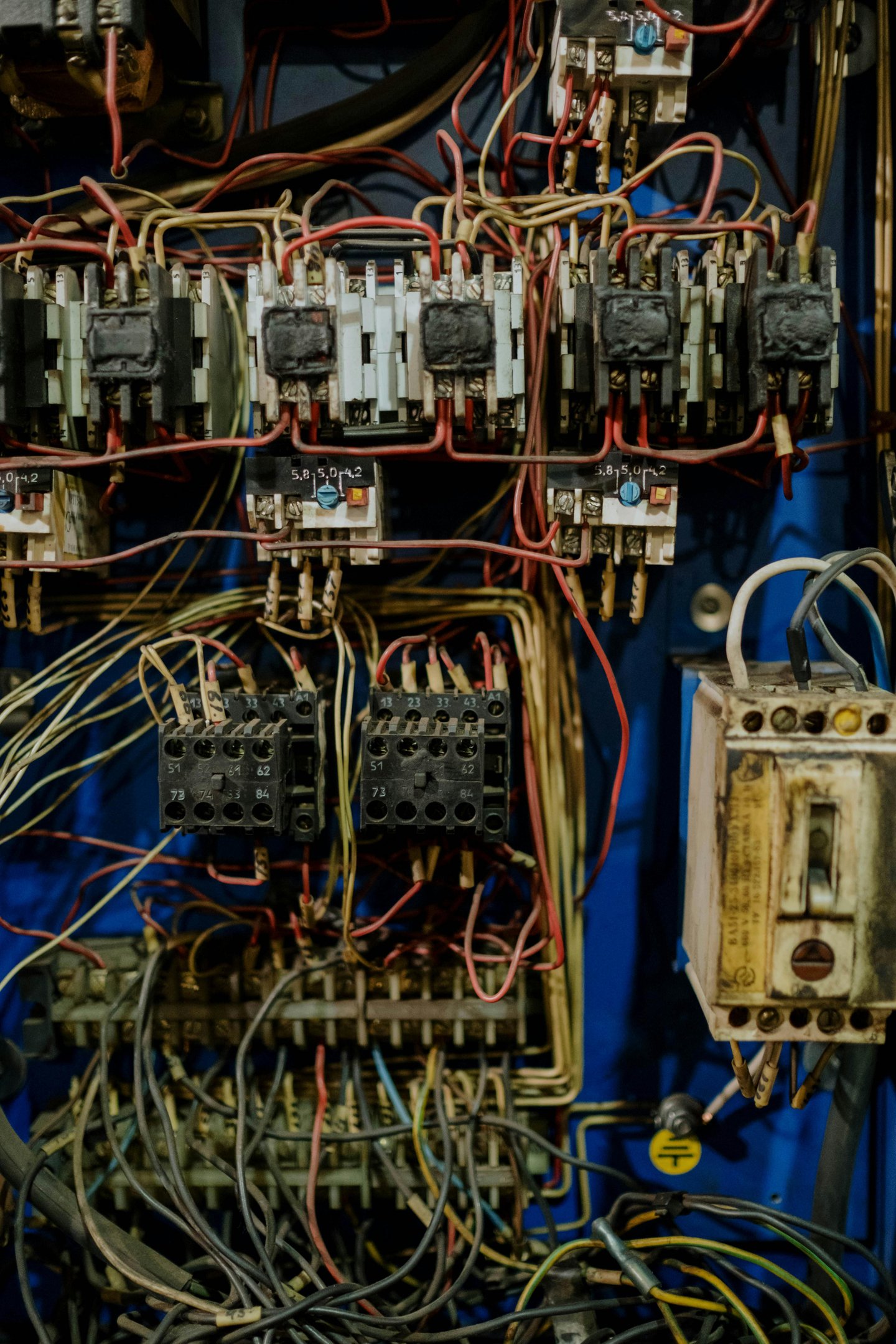

Advanced Electrical Fundamentals for HVAC Technicians

What This Post Covers

• A brief review of core electrical concepts (voltage, current, resistance, power)

• Advanced topics: three-phase motor theory, variable frequency drives (VFDs), power factor, harmonic distortion

• Deep dives into control circuits, including PLCs and DDC systems

• Complex troubleshooting strategies: inrush currents, motor starting methods, grounding considerations

• Safety protocols and code compliance for high-voltage and commercial HVAC systems

• How SuperTech Industries supports Phoenix, AZ technicians looking to stay ahead of the curve

Why Advanced Electrical Knowledge Matters

For many HVAC technicians, understanding basic electrical principles is enough to handle routine maintenance or smaller-scale residential work. But as buildings get smarter and HVAC units become more sophisticated, advanced electrical knowledge can separate a good tech from a truly exceptional one. Modern commercial and industrial sites in Phoenix, AZ often feature complex control systems, multi-stage compressors, and variable frequency drives (VFDs) for fine-tuned performance. If you’re looking to maintain, troubleshoot, or optimize these setups, you need a deeper grasp of electrical fundamentals and beyond.

SuperTech Industries believes in equipping HVAC pros with cutting-edge expertise. Whether it’s diagnosing harmonic issues on a chiller plant or ensuring the correct phase rotation for a high-capacity rooftop unit, advanced electrical insight translates to swift, accurate, and safer problem-solving. In extreme climates like Phoenix, advanced understanding can also mean less downtime for customers relying on precisely controlled environments—often critical for data centers, manufacturing lines, or large commercial complexes.

A Quick Refresher on Core Electrical Concepts

Though we’re going advanced, let’s begin by reaffirming the essentials:

• Voltage (V): Potential difference driving electron flow.

• Current (I): The rate of electron flow, measured in amps (A).

• Resistance (R): Opposition to current, in ohms (Ω).

• Power (P): Voltage × current (measured in watts, W).

In advanced HVAC applications, these definitions tie into more complex issues like power factor (PF), reactive power, and efficiency. Mismanagement of these can lead to unexpected losses or system strain, especially in large commercial equipment. A strong base in ohms, amps, and volts ensures you can pivot into these deeper topics.

Three-Phase Systems: Beyond the Basics

Residential HVAC often uses single-phase 240V power. Commercial or industrial systems, however, are frequently powered by three-phase (208V, 480V, or even higher) to handle larger loads more efficiently. A typical advanced scenario might involve:

Wye vs. Delta Configurations

• Wye (Star): Neutral is the center point; line voltage is higher relative to phase voltage. Commonly found in commercial building distribution because it can supply both single-phase and three-phase loads.

• Delta: No dedicated neutral. Provides robust three-phase power but typically requires a separate transformer or service arrangement for any single-phase loads.

Phase Rotation

• Identifying correct phase rotation (e.g., A-B-C or C-B-A) is crucial when hooking up a new three-phase compressor or large motor. Incorrect rotation can reverse motor direction, potentially damaging pumps or fans.

• Phase sequence analyzers confirm the rotation. Always check it before powering up a newly installed or replaced motor to avoid mechanical stress or short-cycling.

Balancing Loads

• In big commercial settings, load imbalances between phases lead to overheating or premature motor failure. Monitoring line currents on each phase ensures they’re within acceptable limits (often 2–5% difference max).

• If you see one phase consistently carrying more current, investigate loose connections, asymmetrical winding problems, or building distribution issues.

A thorough handle on these three-phase intricacies prevents a litany of headaches, from motor overamps to unexpected breaker trips. It’s especially relevant for those advanced rooftop units or industrial chillers that keep Phoenix warehouses cool in 110°F weather.

Deep Dive: Power Factor and Harmonic Distortion

Power Factor (PF): Defined as the ratio of real power (kW) to apparent power (kVA). A PF closer to 1.0 indicates efficient power usage. Inductive loads—like motors and transformers—often exhibit a lagging power factor, meaning the system draws more current than strictly needed for real work.

• Why It Matters in HVAC: Large motors, including compressor motors, degrade power factor if left uncorrected. Utilities may impose penalties for low PF, so facility managers might install capacitor banks or power factor correction equipment. As a technician, you may have to integrate or troubleshoot these correction devices.

Harmonic Distortion: Nonlinear loads (like variable frequency drives or electronic ballasts) introduce current harmonics back into the supply. This can lead to overheated transformers, nuisance tripping, or erroneous operation of sensitive electronics.

• Key Concept: Total Harmonic Distortion (THD): Higher THD means more “noise” and potential interference. VFD-driven motors sometimes require filters or chokes to mitigate harmonic backfeed.

• Advanced Symptom: If building lights flicker or you see repeated capacitor bank failures, suspect harmonic distortion. Tools like power quality analyzers measure harmonic levels, revealing the need for line reactors or harmonic filters.

These complexities underscore why advanced HVAC technicians need more than a basic multimeter. If a system is experiencing harmonic issues or power factor concerns, you may need specialized equipment (e.g., power analyzers) and a deeper theoretical background to propose lasting solutions.

Introducing Variable Frequency Drives (VFDs)

VFDs have become a standard in commercial HVAC for modulating motor speeds—particularly for large blowers, pumps, or cooling tower fans. By adjusting frequency and voltage supply, VFDs tailor motor output to real-time demand, yielding substantial energy savings.

• Key Benefits: Reduced inrush current, soft starts, minimized mechanical stress.

• Common Issues: Improper parameter setup, harmonic distortion, or line-side noise leading to sensitive electronics in the system malfunctioning.

• Maintenance: Ensure adequate cooling for VFD enclosures, check for loose busbars, inspect DC bus capacitors for swelling, and watch for error codes (like overvoltage or ground fault).

• Programming: Many drives use brand-specific software or interface panels. Understanding basic parameters (accel/decel times, carrier frequency, torque curves) is vital for stable operation.

When you suspect VFD trouble (e.g., motor fails to ramp correctly or the drive intermittently trips), a methodical approach is crucial:

1. Check Input Power Quality: Balanced line voltages, minimal distortion.

2. Inspect Output Wiring: Even a minor ground fault or partial short affects drive operation.

3. Review Drive Logs or Error Codes: These can pinpoint faults like “Overcurrent,” “Overspeed,” or “Temperature.”

4. Consult Drive Manual: Parameter misconfigurations are more common than you’d think—someone might have set an incorrect motor nominal current or speed limit.

Advanced Control Circuits: PLCs and DDC Systems

Beyond conventional thermostat-and-contactor setups, large complexes use Programmable Logic Controllers (PLCs) or Direct Digital Control (DDC) for integrated building automation. Some examples:

• PLC-Driven HVAC:

  • Typically found in industrial processes. A PLC monitors temperature, humidity, or pressure sensors, then activates the compressor, condenser fans, or chilled water pumps accordingly.

  • Ladder logic or function block diagrams replace simple relay wiring. A thorough knowledge of PLC I/O scanning, input signal scaling, and fail-safe routines is essential.

• DDC in Commercial Buildings:

  • A building automation system (BAS) might incorporate multiple air handlers, VAV boxes, and chillers, all coordinated via a DDC network.

  • Troubleshooting often includes verifying sensor addresses or network comm protocols (BACnet, Modbus).

  • If a fan coil unit is misbehaving, the root cause could be a software override in the DDC system, not just a local relay.

An advanced HVAC technician is comfortable reading logic flowcharts, adjusting PID loops, or diagnosing network connectivity problems in these systems. If you’re bridging the mechanical and electrical sides, you become a valuable hybrid resource—able to confirm mechanical reliability and interpret digital signals or software instructions.

Inrush Currents, Soft Starters, and Motor Starting Methods

Many advanced HVAC systems employ specialized strategies to handle inrush current—that spike of current when a motor first powers on:

1. Across-The-Line Start (DOL—Direct On-Line):

   • Motor sees full line voltage immediately. Great for smaller motors but can create large current surges and mechanical shock for bigger motors.

2. Wye-Delta Starting:

   • Starts the motor in a wye configuration (lower voltage per winding) for reduced inrush, then switches to delta for normal running torque. Common for large compressors or chillers.

3. Soft Starters:

   • Ramp voltage up gradually, limiting inrush. Typically used for large motors where a VFD isn’t necessary for speed control but a gentler start is desired.

   • If you see repeated soft starter faults, consider verifying line voltage sag, checking bypass contactor alignment, or ensuring firmware is up to date.

4. VFD as Starter:

   • A VFD inherently offers a soft start by ramping frequency and voltage. Overkill for a simple constant-speed motor but perfect if you need both a smooth start and speed control.

As a technician, it’s important to measure LRA (Locked Rotor Amps) with a clamp meter if needed, ensuring the chosen starting method matches the equipment’s specs. If inrush is too high, it can trip breakers or push the motor’s winding temperature beyond safe limits.

Grounding and Bonding Considerations

Proper grounding ensures any fault current finds a safe path, preventing shock hazards and electronics damage. For advanced HVAC systems:

• Ground Reference for VFDs: High-frequency switching can cause stray currents. Good bonding from the drive chassis to the building’s grounding system helps reduce EMI (electromagnetic interference).

• Metal Conduit vs. Ground Wire: Some older installs rely on metal conduit as the equipment ground. Verify continuity and that there’s no corrosion. Modern code often requires a dedicated ground conductor.

• Chiller / Rooftop Units: Large metal enclosures in harsh conditions are prone to rust or loose lug connections. Inspect these regularly, especially in environments with dust or moisture.

An advanced tech checks voltage potential between neutral, ground, and hot legs to confirm minimal voltage drop or hidden grounding issues. Ground loops, for instance, might cause control board erratic behavior—particularly in large plants or multi-building campuses.

Detailed Troubleshooting Scenarios

Scenario 1: Chiller Motor Overheating with No Obvious Overcurrent

• Hypothesis: Motor is encountering voltage imbalance or poor power factor in one phase.

• Approach: Measure each line’s voltage and current, examine power factor, and watch for minor harmonics. A 2–3% voltage imbalance can lead to 8–10% higher winding temperature.

Scenario 2: VFD Trips on Overvoltage

• Hypothesis: During deceleration, the motor acts as a generator, raising DC bus voltage. Deceleration ramp time might be too short or the braking resistor is undersized.

• Approach: Lengthen the deceleration time, confirm braking resistor sizing, or add dynamic braking modules. Also, monitor incoming line voltage surges.

Scenario 3: Control Board Malfunction in a Packaged Rooftop

• Hypothesis: Intermittent 24V supply issues or ground references causing board resets.

• Approach: Monitor the control transformer output under load. Inspect harness for pinched or wet wires. Use a scope or advanced multimeter to check for noise on the 24V line.

Scenario 4: Repeated Start Capacitor Failures

• Hypothesis: Motor startup torque is abnormally high—maybe the run capacitor is mislabeled or the compressor is partially seized.

• Approach: Confirm motor’s rated run capacitor spec. Evaluate mechanical load (e.g., rotating compressor shaft by hand). If the compressor is stiff, even a correct capacitor might overheat.

Staying Code Compliant and Safe

Advanced projects often cross into higher voltage lines or industrial settings where code compliance is stringent:

• NEC (National Electrical Code) guidelines are paramount. Many commercial sites in Phoenix require permits and inspections for large rewiring or significant HVAC modifications.

• Article 440 (Air-Conditioning and Refrigeration Equipment) in the NEC specifically addresses HVAC equipment overcurrent protection, fuse sizing, and conductor ampacity.

• Arc-Flash Considerations: Larger electrical panels or motor control centers might need arc-flash labeling and personal protective equipment (PPE). Adhering to NFPA 70E guidelines is non-negotiable.

Double-check local amendments in Arizona, too. Some municipalities have specific interpretations or more rigorous demands on grounding, labeling, or seal-tight connectors for rooftop units. Overlooking these details can halt your project or, worse, leave a safety hazard unaddressed.

Integrating Advanced Tools & Techniques

Basic meters are fine for smaller tasks, but advanced troubleshooting sometimes calls for:

• Power Quality Analyzers: Measure voltage/current waveforms, THD, power factor, and transients.

• Infrared (IR) Cameras: Spot overheating conductors, terminals, or motors—especially helpful in big commercial gear or during dust storms when vents might clog.

• Advanced Clamp Meters: Offer inrush current capture, phase rotation tests, or data logging.

• Oscilloscopes: Rare in everyday HVAC, but invaluable for investigating PWM signals from VFD outputs or weird control board waveforms.

Before investing in top-tier equipment, ensure you’re comfortable interpreting the data. A power quality meter can produce reams of numbers—knowing how to read them is key to diagnosing and recommending solutions.

Teaming Up with SuperTech Industries in Phoenix, AZ

With the complexity of modern HVAC systems, it’s normal to encounter unusual or advanced electrical challenges. That’s precisely where SuperTech Industries steps in. Our approach:

• Consulting & Training: We host workshops for HVAC professionals wanting to expand their electrical or controls expertise.

• Complex Installations: From large VFD retrofits to multi-unit roof installations, we handle the advanced wiring and code compliance so you can focus on core mechanical tasks.

• Emergency Support: In scorching Phoenix summers, you can’t afford downtime. We offer rapid-response teams to tackle severe electrical/HVAC breakdowns.

• “Simple Solutions. Superior Results.”: This motto means applying sophisticated knowledge simply and effectively—no overcomplicating or upselling, just top-grade service.

If you’re facing an advanced scenario—harmonic distortion in a chiller plant, multi-stage air handlers refusing to run, or odd control signals from a brand-new DDC system—our supertechs are a call away. “Don’t just call a tech, call a supertech.”

Common Questions for Advanced Techs

1. How do I detect a small ground fault in a large chiller?
Check if current is flowing in the grounding conductor using a clamp meter. If it’s above zero, systematically isolate circuits or use an insulation resistance tester (megohmmeter) on each motor winding.

2. Why is my newly installed VFD producing radio interference?
VFDs switch at high frequency. If line or motor leads lack proper shielding or if grounding is insufficient, electromagnetic interference (EMI) can radiate. Fit an EMI filter or route cables away from sensitive circuits.

3. Can I reprogram a PLC controlling an air handler?
If you’re trained on that brand of PLC software, yes. Ensure you follow site documentation, back up the existing logic, and test thoroughly. Unauthorized or incorrect changes could disrupt the entire building automation system.

4. What’s the best approach for testing large compressor windings?
Use a megohmmeter for insulation checks at appropriate test voltages (e.g., 500–1000V). Then measure winding resistance with a low-ohm meter. Compare to manufacturer specs for run, start, and common terminals.

5. How do I safely manage arc flash risk?
Conduct an arc flash study or follow posted incident energy labels on the equipment. Use PPE (arc-rated clothing, face shields, gloves) if working within the flash protection boundary. Always de-energize where possible before opening panels.

Stepping Up to the Next Level of HVAC Mastery

In an era of advanced motor technologies, building automation, and multi-phase power supplies, an HVAC technician with top-tier electrical acumen is in high demand. From measuring subtle harmonic distortion to programming a VFD or diagnosing a shorted stator winding, these electrical fundamentals form the bedrock of mastery in complex systems.

SuperTech Industries champions ongoing learning for Phoenix, AZ’s HVAC community. We’ve seen how a thorough command of advanced electrical concepts elevates service quality, fosters safer installations, and ensures customers remain cool—even amid triple-digit temperatures. If you’re ready to tackle bigger challenges—or if you need specialized help you can’t address alone—our experts stand by to assist.

“Don’t just call a tech, call a supertech.”

Contact Us:

• Phone: 480-914-0911

• Website: SuperTech.tech

Let’s drive HVAC innovation together, merging mechanical finesse with robust electrical insight. That synergy sets the stage for truly Simple Solutions. Superior Results.
