What Is an AC Capacitor?

An AC capacitor is a small electrical part that helps your air conditioner’s motors start and run. When it fails, your system may hum, struggle, or stop cooling

6/7/20262 min read

What Is an AC Capacitor?

A capacitor is a small electrical component inside your HVAC system that stores and releases energy.

The easiest way to think about it is this:

A capacitor is like a battery that gives your AC motor a quick boost when it needs help starting or running.

Your air conditioner has motors that require a lot of energy to get moving. The outdoor fan motor and compressor both need that extra push. The capacitor provides that boost so the system can start properly and continue operating efficiently.

Why Your AC Needs a Capacitor

Your AC system uses electricity, but the motors do not always start smoothly on their own. Starting a compressor or fan motor takes more effort than keeping it running.

The capacitor helps by:

Helping the compressor start
Helping the outdoor fan motor start
Keeping motors running smoothly
Reducing strain on electrical components
Supporting proper AC operation during hot weather

Without a good capacitor, your AC may try to start but fail. You might hear humming, clicking, or buzzing from the outdoor unit. The fan may not spin. The system may blow warm air. In some cases, the unit may shut down completely.

Why Capacitors Fail

Capacitors are common failure points in air conditioning systems, especially in hot climates.

Heat is one of their biggest enemies. In places like Arizona, outdoor AC units sit in extreme temperatures for months. Over time, that heat wears the capacitor down. Electrical stress, age, power surges, and long run times can also weaken it.

A capacitor can look perfectly normal and still be weak. That is why testing it during maintenance is important.

Signs of a Bad Capacitor

A failing capacitor may cause:

Your AC to hum but not start
The outdoor fan to stop spinning
Warm air from the vents
The system to turn on and off repeatedly
Higher energy bills
A burning smell near the outdoor unit
The AC to take longer than usual to start

One common sign is when the outdoor unit hums, but the fan blade is not moving. That can mean the motor is trying to start but is not getting the electrical boost it needs.

Why a Bad Capacitor Should Not Be Ignored

A weak capacitor may seem like a small issue, but it can lead to bigger problems.

When a capacitor is failing, the compressor and fan motor may have to work harder than they should. That added strain can overheat components, shorten motor life, and increase the risk of a more expensive repair.

In other words, a capacitor is a relatively small part that helps protect much larger and more expensive parts.

Maintenance Can Catch Capacitor Problems Early

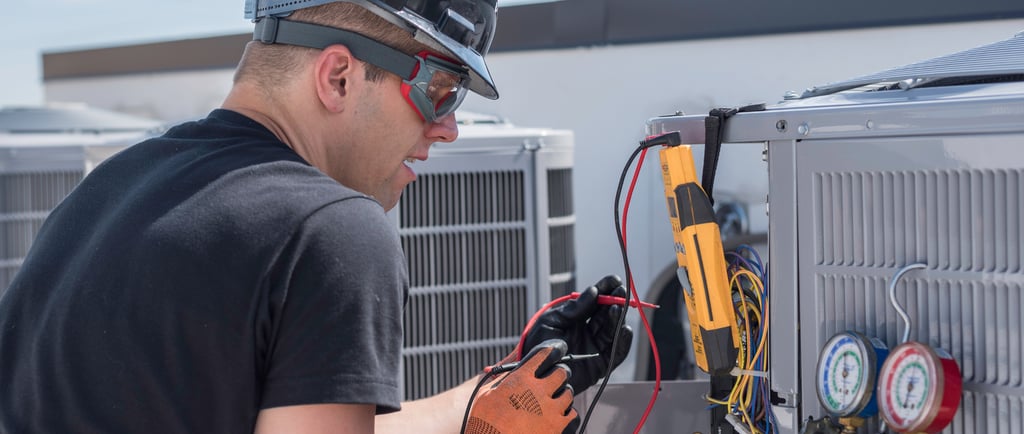

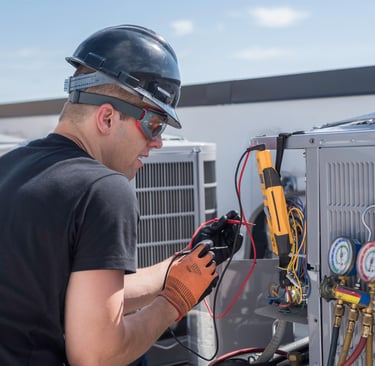

During an HVAC maintenance visit, a technician can test the capacitor and compare its reading to the manufacturer’s rating. If it is getting weak, it can often be replaced before it causes a breakdown.

That is one of the biggest values of regular AC maintenance. It helps catch small electrical problems before they turn into hot-day emergencies.

The Bottom Line

A capacitor is a small but important part of your air conditioning system. It gives your compressor and fan motors the electrical boost they need to start and run properly.

When it fails, your AC may struggle, hum, blow warm air, or stop working altogether.

The good news is that capacitor problems are usually easy to identify during maintenance. Catching a weak capacitor early can help protect your system, reduce stress on expensive parts, and keep your home comfortable when you need your AC most.
